The HD780L injection molding machine features three screw diameter options (100mm, 105mm, 110mm) with L/D ratios of 22.6, 21.5, and 20.5 respectively. It provides an injection volume from 4006 cm³ to 4847 cm³, shot weights from 3645g to 4411g, and injection pressures up to 184 Mpa.

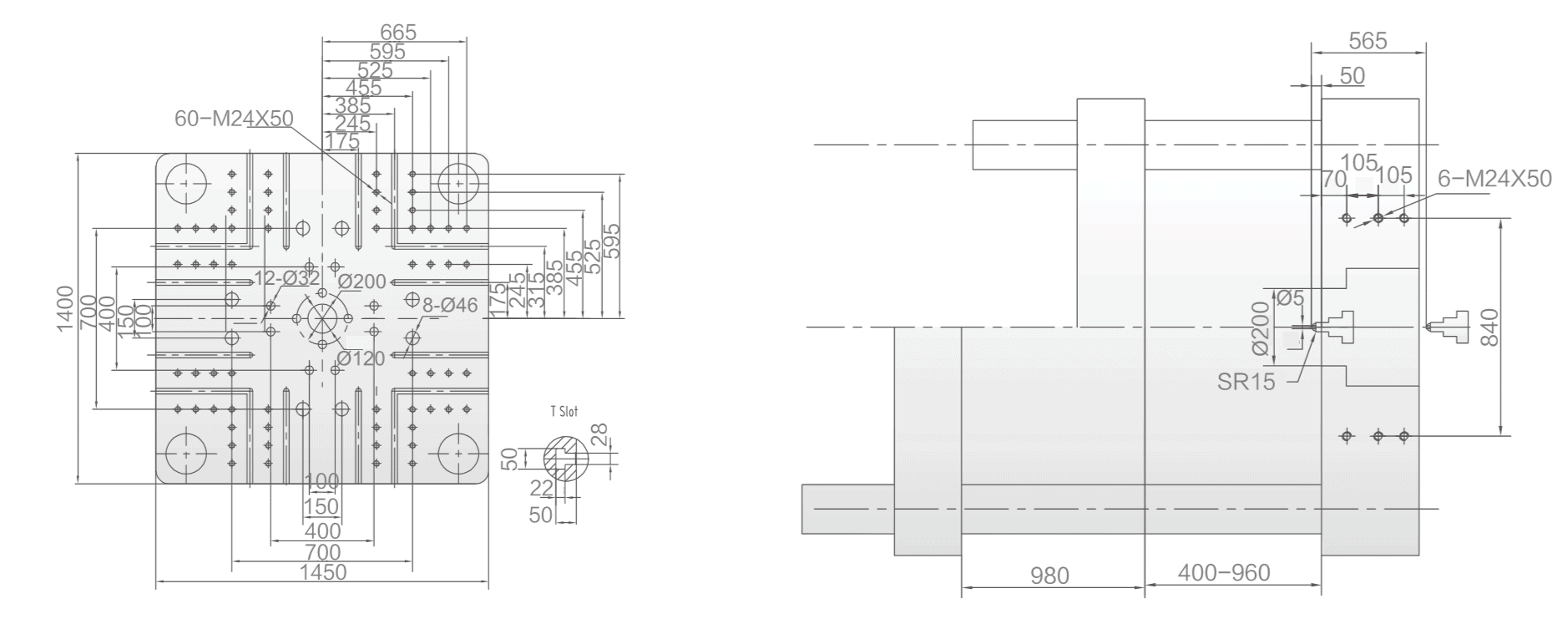

The clamping unit delivers a substantial clamping force of 7800 KN, an opening stroke of 980mm, and can accommodate mold thicknesses from 400mm to 960mm. The space between tie-bars measures 980mm x 960mm, and it includes a hydraulic ejection force of 212 KN with an ejector stroke of 270mm.

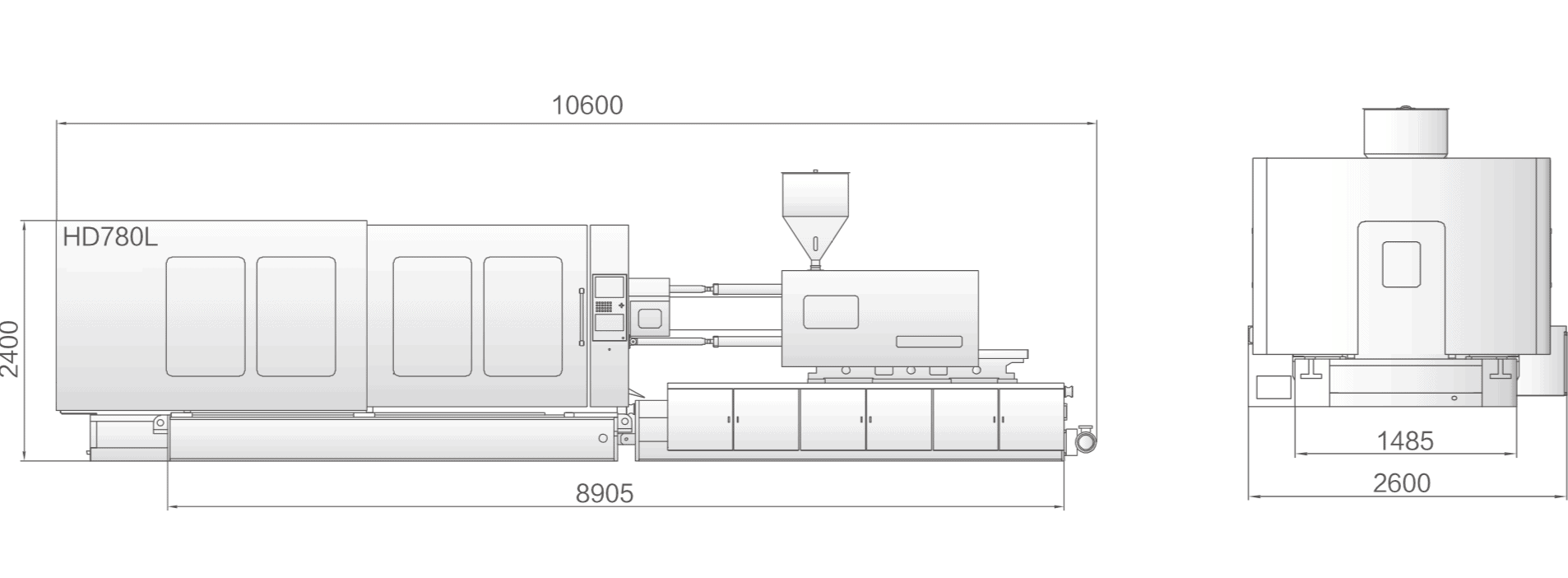

The machine operates on dual 45 KW motors, includes a 52 KW heater, and maintains a pump pressure of 16 Mpa. The HD780L measures 10.6m x 2.6m x 2.4m and weighs 37.8 tons. It comes equipped with a Φ200mm mould orientation ring and a SR20 radius nozzle
