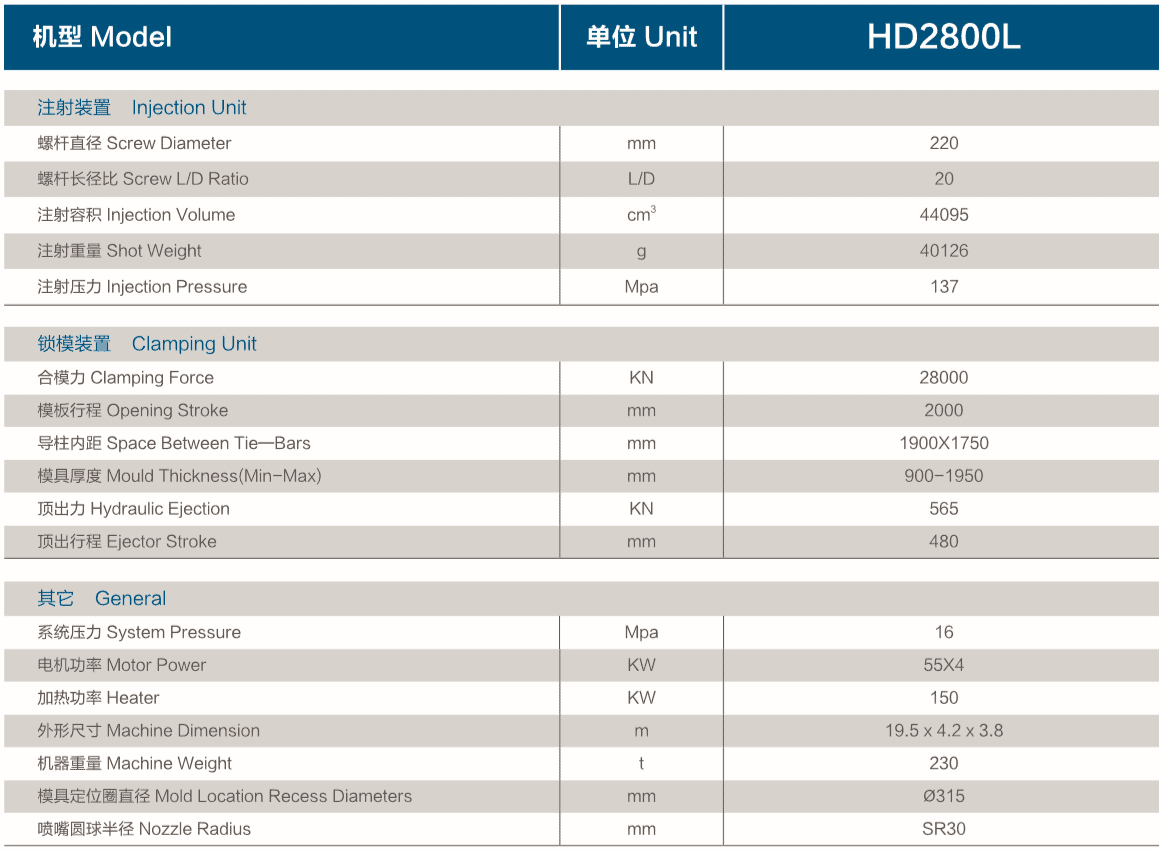

Haida HD2800L injection molding machine features a screw diameter of 220mm with an L/D ratio of 20. It provides an injection volume of 44095 cm³, a shot weight of 40126g, and an injection pressure of 137 Mpa.

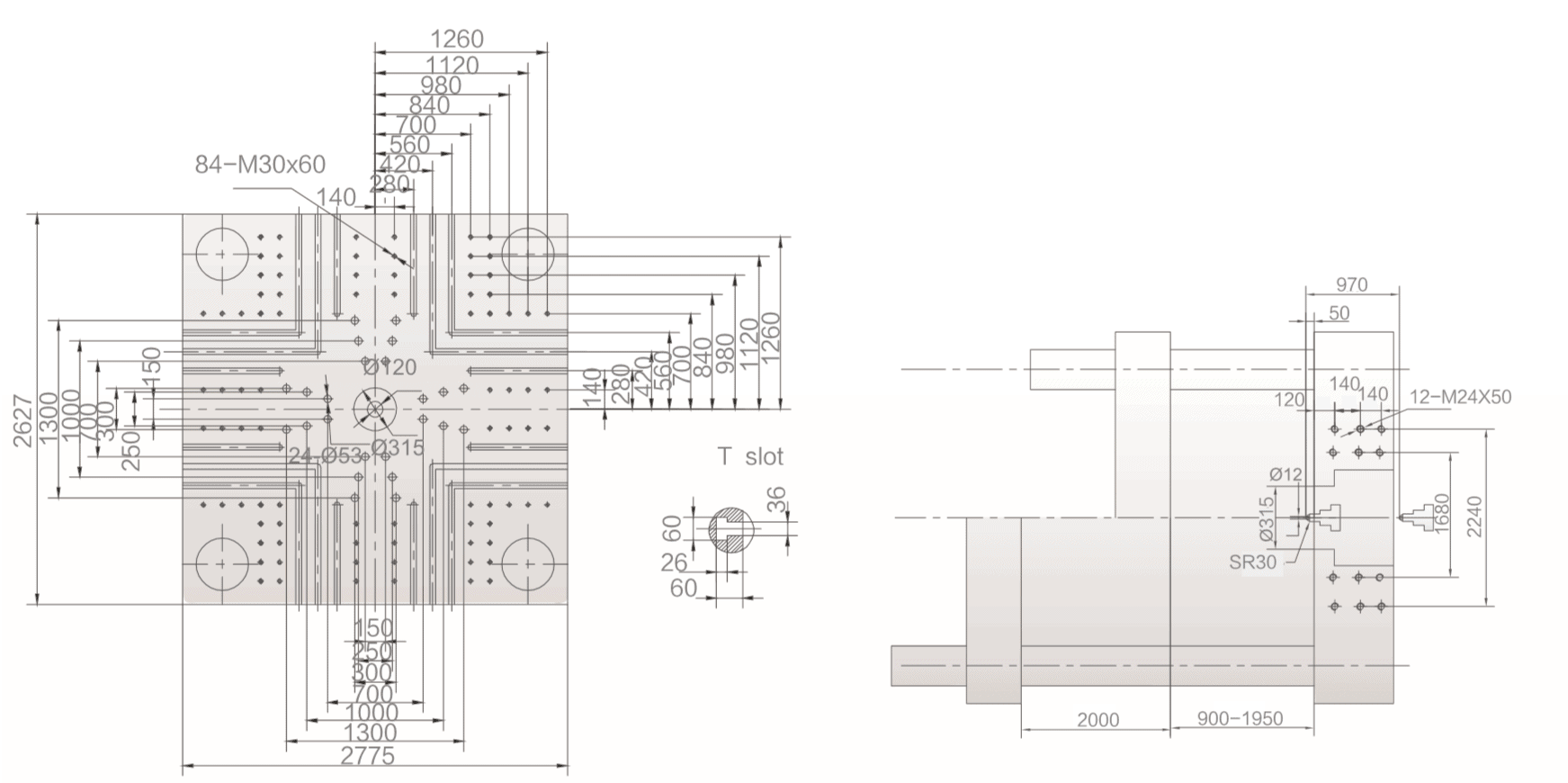

The clamping unit offers a robust clamping force of 28000 KN, an opening stroke of 2000mm, and can accommodate mold thicknesses from 900mm to 1950mm. The space between tie-bars measures 1900mm x 1750mm, and it includes a hydraulic ejection force of 565 KN with an ejector stroke of 480mm.

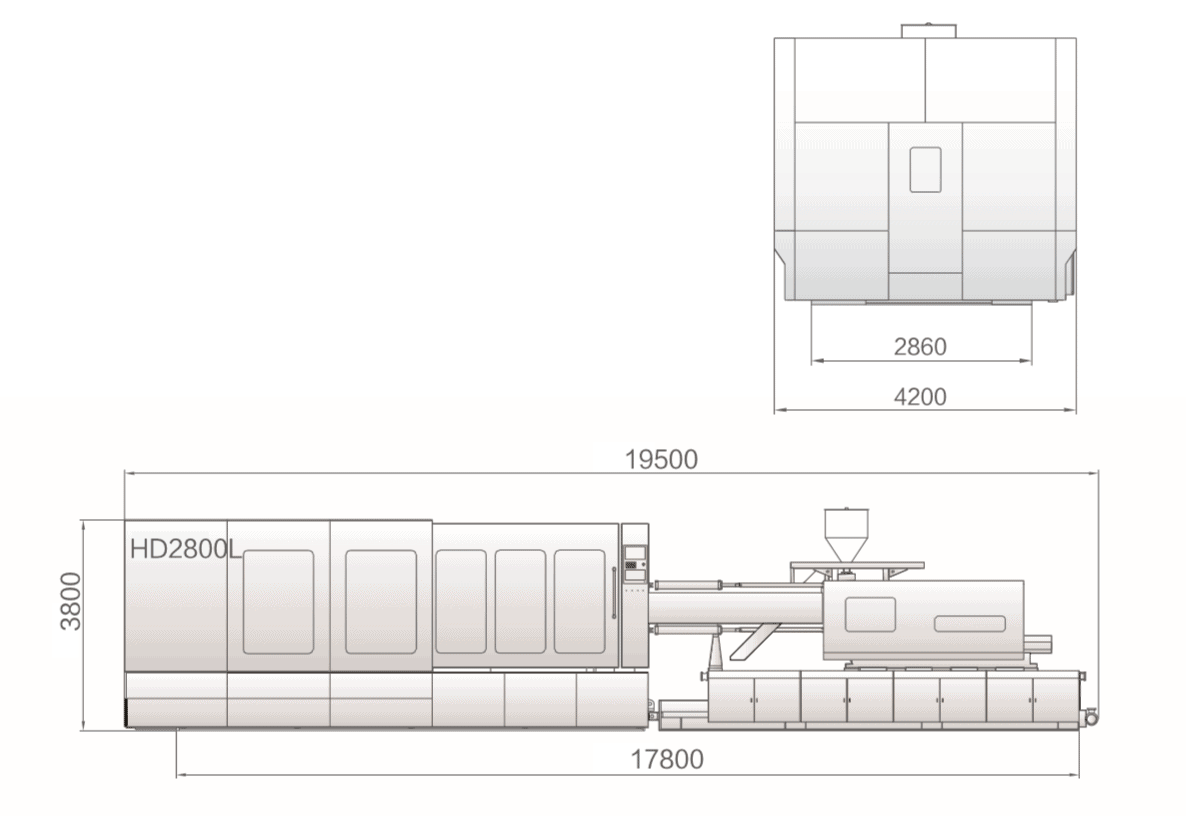

The machine operates on four 60 KW motors, includes a 150 KW heater, and maintains a pump pressure of 16 Mpa. The HD2800L measures 19.5m x 4.2m x 3.8m and weighs 230 tons. It comes with a Φ250mm mould orientation ring and a SR30 radius nozzle.
