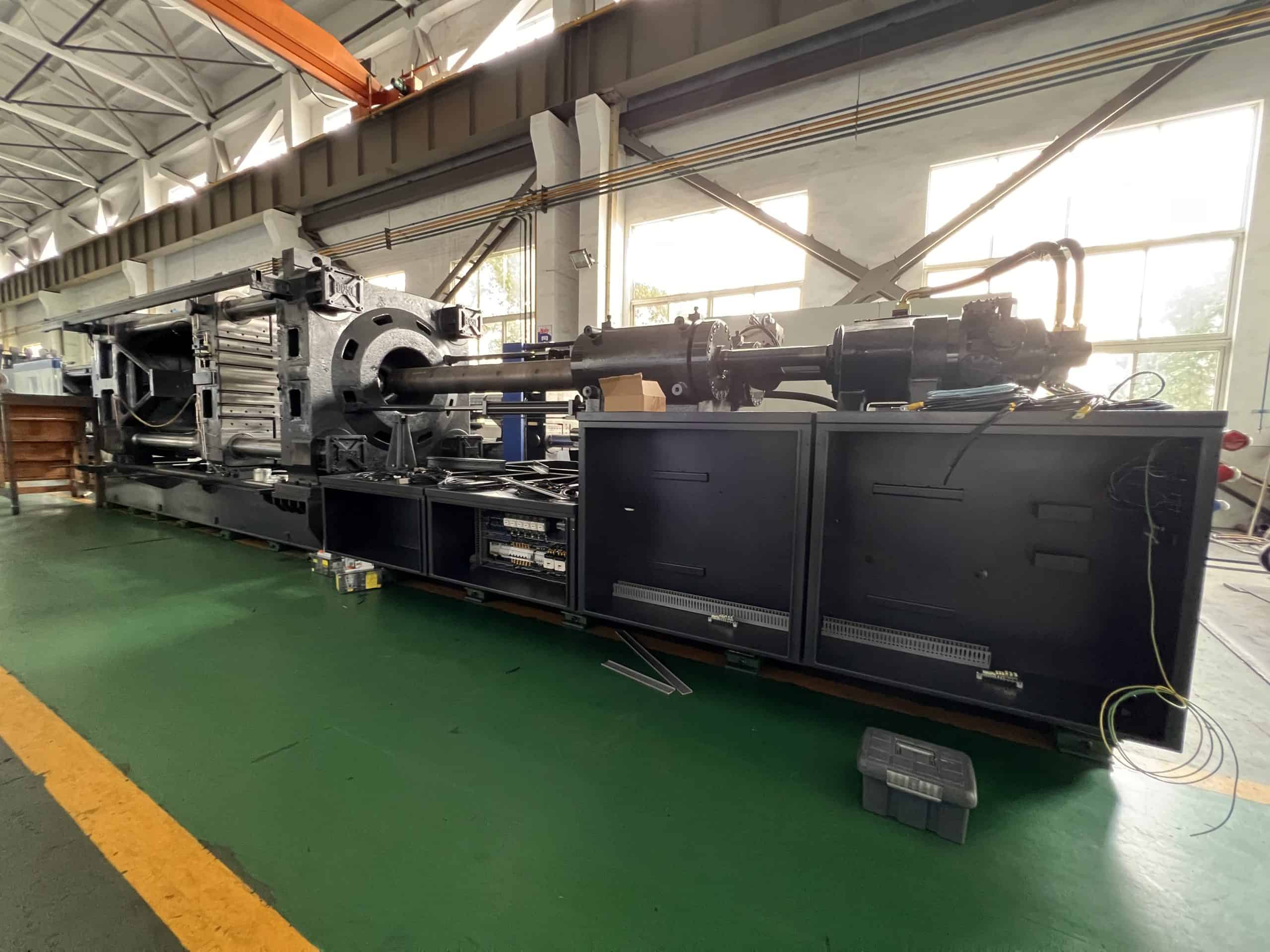

Haida HD1250L injection molding machine provides three screw diameter options (120mm, 130mm, 140mm) with L/D ratios of 24.2, 22.3, and 20.7 respectively. It offers an injection volume from 6556 cm³ to 8923 cm³, shot weights from 5966g to 8120g, and injection pressures up to 179 Mpa.

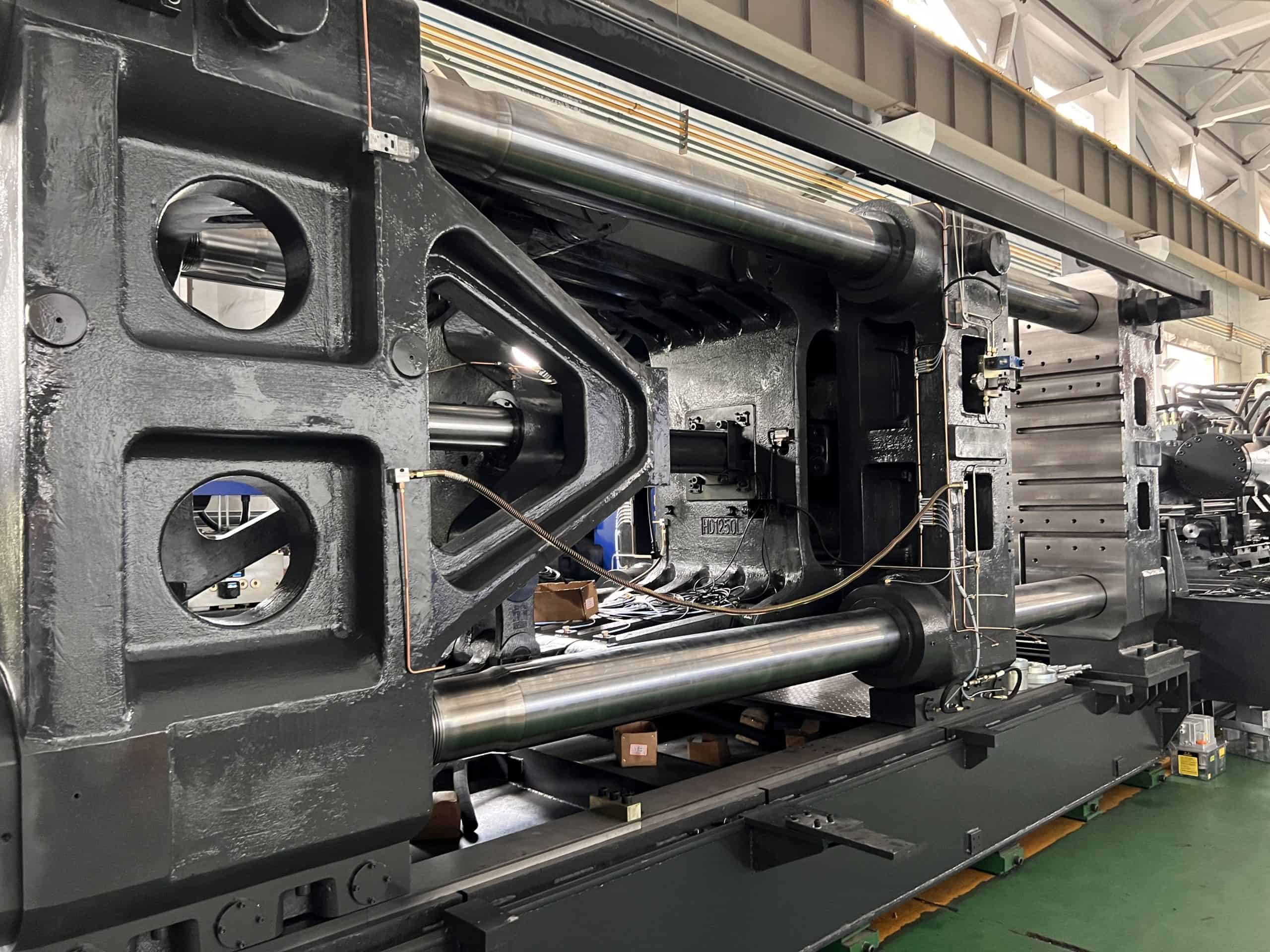

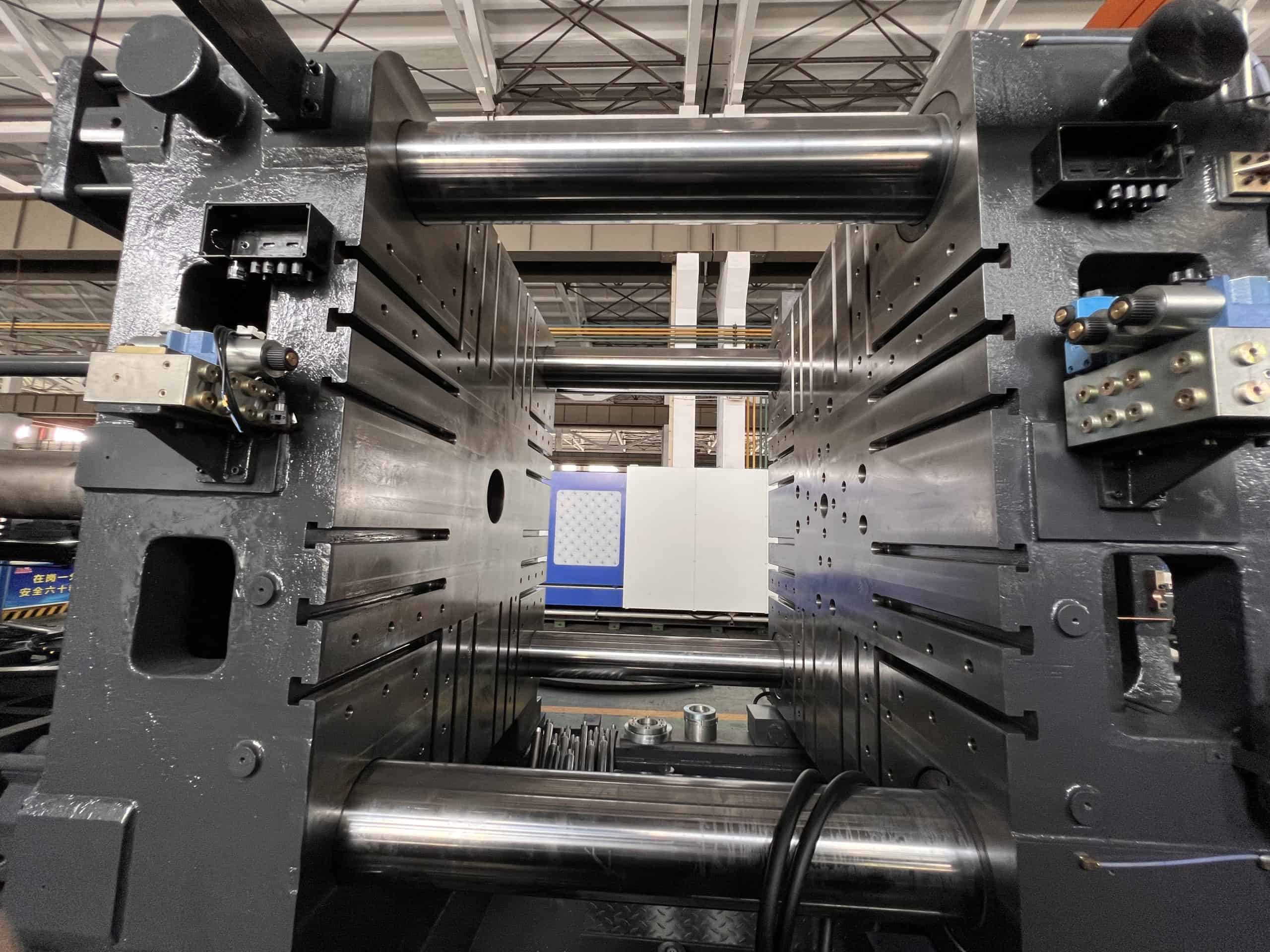

The clamping unit delivers a powerful clamping force of 12500 KN, an opening stroke of 1300mm, and can accommodate mold thicknesses from 550mm to 1300mm. The space between tie-bars measures 1260mm x 1260mm, and it features a hydraulic ejection force of 282.6 KN with an ejector stroke of 350mm.

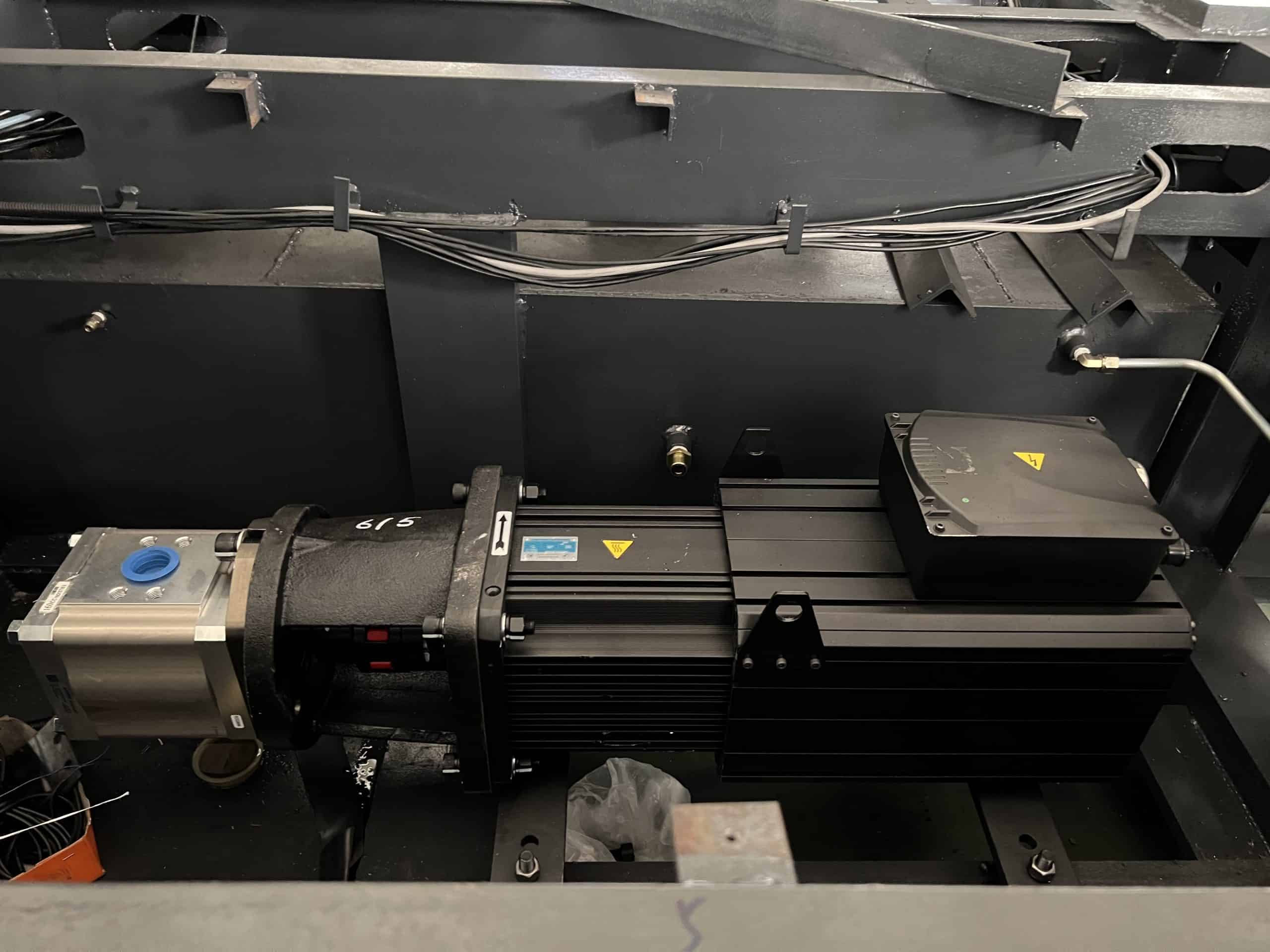

The machine operates on dual 60 KW motors, includes  78.3 KW heaters, and runs at a pump pressure of 16 Mpa. The HD1250L measures 13.45m x 3.05m x 2.8m and weighs 70 tons. It comes equipped with a Φ200mm mould orientation ring and a SR20 radius nozzle.
