HAIDA HD550LC SERVO INJECTION MOLDING MACHINE FOR RECYCLED BASKETS/CRATES

Clamping Force: 5500KN(550 Tonnage)

Lead time: 60 workdays

Customization: Customized design(Min. order 1 set)

Supply Ability: 500set/month

Packaging Details: Wooden pallet /plastic bag/wooden box

Port: Ningbo Port, Shanghai port

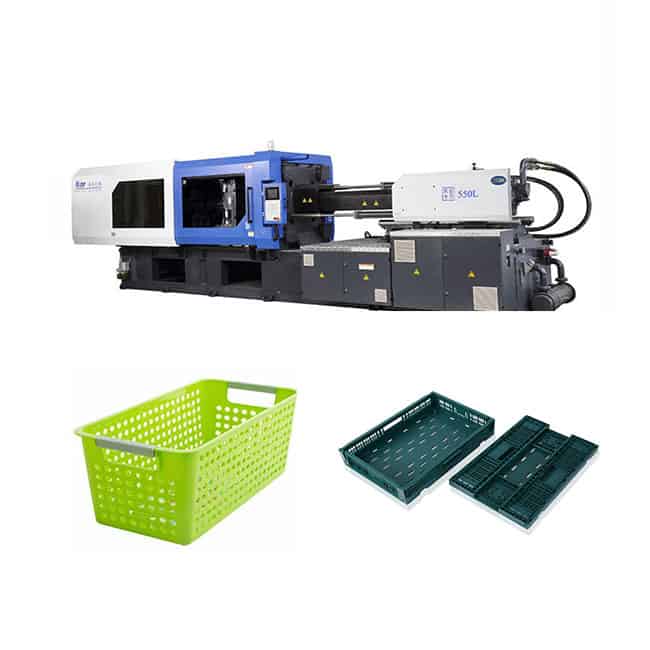

haida HD550LC Servo Injection Molding Machine

Haida HD550LC is a high-efficiency injection molding machine. The injection unit has a screw diameter of 95 mm with a screw length-to-diameter ratio of 19.2. It can manage an injection volume of 3281 cm³ and a shot weight of 3510 g when using black recycled PP. The plasticizing capability is 158 g/s, and the injection rate is 795 g/s, operating at an injection pressure of 131 MPa.

The clamping unit employs a force of 5500 kN, an opening stroke of 850 mm, and a space between tie-bars measuring 840x830 mm. The mold thickness can range from 350 to 850 mm.

The hydraulic ejection force is 181 kN with an ejector stroke of 220 mm. The system operates at a pressure of 16 MPa, powered by a 60 KW motor and a 32 KW heater.

The machine measures 9.1 x 2.4 x 2.3 m and weighs 22.8 tons. The mold location recess diameter is 200 mm, and the nozzle radius is SR15.

Haida HD550LC is for recycled material baskets and crates manufacturering.

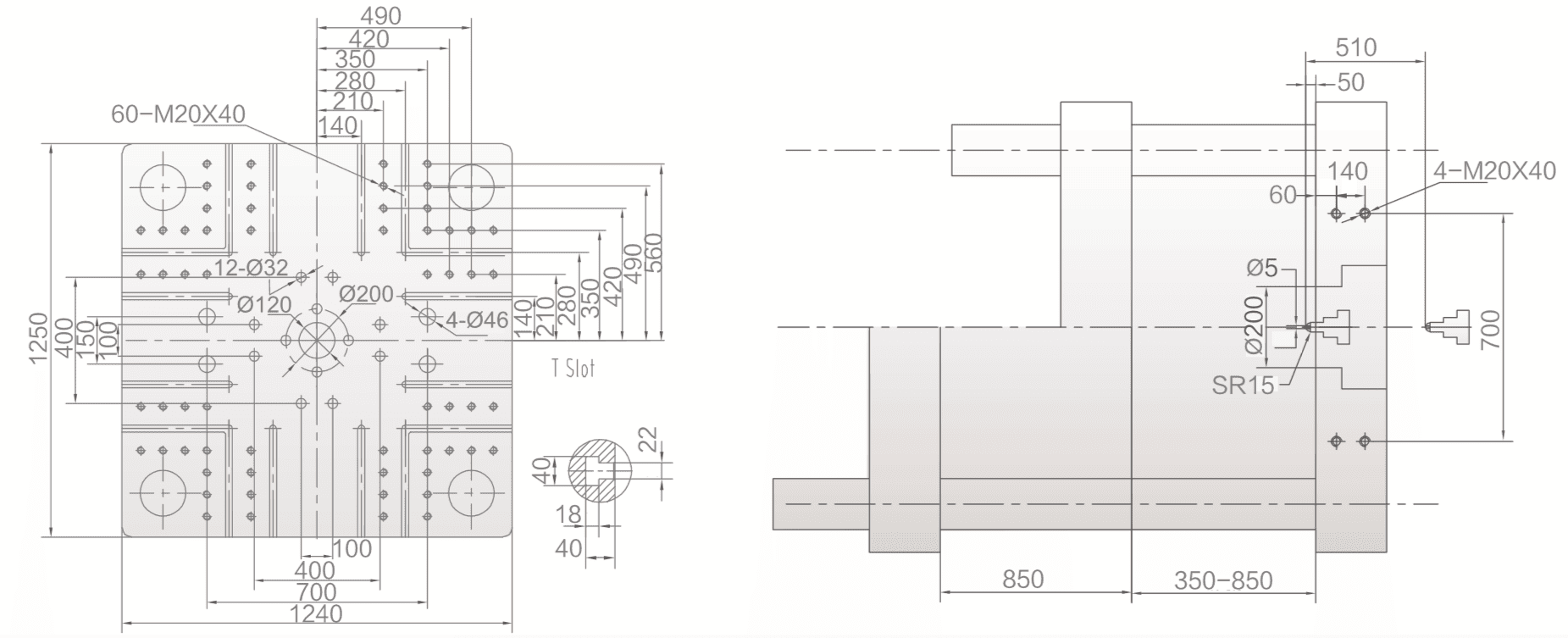

haida HD550LC Specifications

Model	Unit	HD550L-C
Injection Unit
The screw diameter	mm	95
Length diameter ratio of screw	L/D	19.2
Injection volume	cm3	3281
Injection weight（black recycled PP）	g	3510
Plasticizing ability (black recycled PP)	g/s	158
Injection rate (black recycled PP)	g/s	795
Injection Pressure	Mpa	131
Clamping Unit
Clamping Force	KN	5500
Opening Stroke	mm	850
Space Between Tie-Bars	mm	840x830
Mould Thickness(Min-Max)	mm	350-850
Hydraulic Ejection	KN	181
Ejector Stroke	mm	220
General
System Pressure	Mpa	16
Motor Power	KW	60
Heater	KW	32
Machine Dimension	m	9.1 x 2.4 x 2.3
Machine Weight	t	22.8
Mold Location Recess Diameters	mm	200
Nozzle Radius	mm	SR15
