HAIDA HD330L-c SERVO INJECTION MOLDING MACHINE FOR rECYCLED BASKET

Clamping Force: 3300KN(330 Tonnage)

Lead time: 45 workdays

Customization: Customized design(Min. order 1 set)

Supply Ability: 500set/month

Packaging Details: Wooden pallet /plastic bag/wooden box

Port: Ningbo Port, Shanghai port

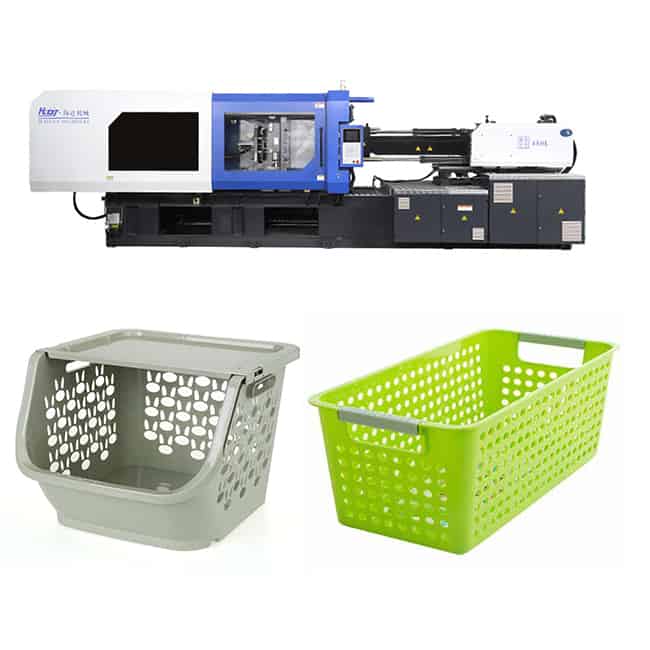

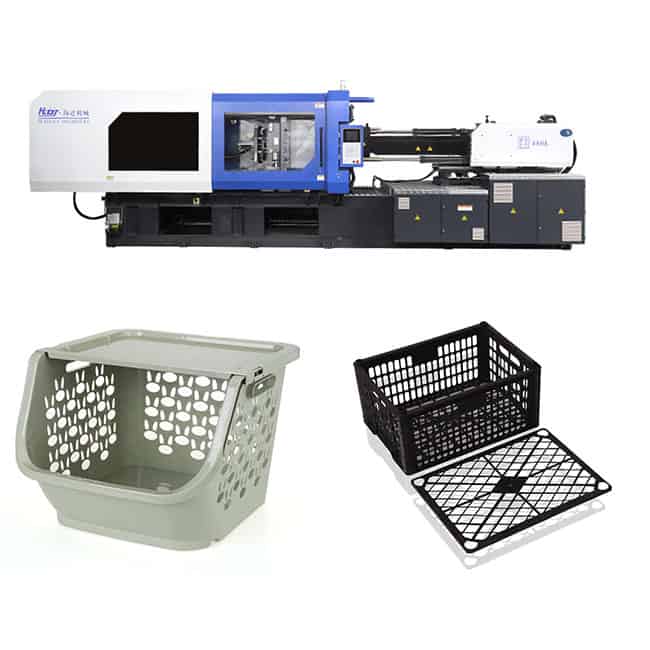

haida HD330L-C Servo Injection Molding Machine For Recycled Baskets

Haida HD330L-C is a high-performance injection molding machine featuring a screw diameter of 80 mm with a length-to-diameter ratio of 18.3. It boasts an injection volume of 1508 cm³ and a shot weight of 1613 g using black recycled PP. The machine can provide an injection pressure of up to 133 MPa.

The clamping unit has a force of 3300 kN and an opening stroke of 660 mm, with a space between tie bars measuring 680x680 mm. It can accommodate mold thicknesses ranging from 250 to 680 mm.

The hydraulic ejection force is 91 kN with an ejector stroke of 170 mm. The system operates at a pressure of 16 MPa, with a motor power of 37 KW and a heater power of 24 KW.

The machine dimensions are 7.5 x 2.0 x 2.6 m, and it weighs 13 tons. The mold location recess diameter is 160 mm, and the nozzle radius is SR15.

haida hD330L-C Specifications

Model	Unit	HD330L-C
Injection Unit
The screw diameter	mm	80
Length diameter ratio of screw	L/D	18.3
Injection volume	cm3	1508
Injection weight（black recycled PP）	g	1613
Plasticizing ability (black recycled PP)	g/s	100
Injection rate (black recycled PP)	g/s	450
Injection Pressure	Mpa	133
Clamping Unit
Clamping Force	KN	3300
Opening Stroke	mm	660
Space Between Tie-Bars	mm	680x680
Mould Thickness(Min-Max)	mm	250-680
Hydraulic Ejection	KN	91
Ejector Stroke	mm	170
General
System Pressure	Mpa	16
Motor Power	KW	37
Heater	KW	24

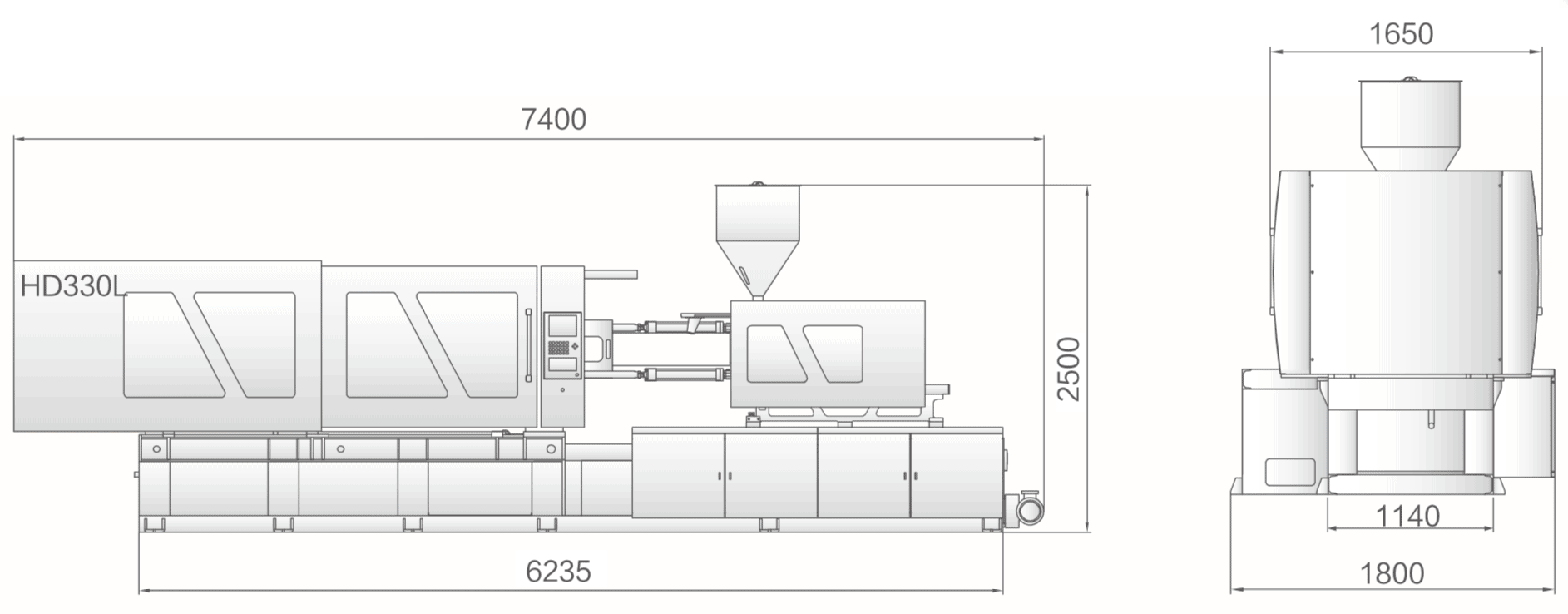

Machine Dimension	m	7.5 x 2.0 x 2.6
Machine Weight	t	13
Mold Location Recess Diameters	mm	160
Nozzle Radius	mm	SR15
